● Pneumatic cylinder typ with large output force

● Long stroke , flexible motion

● Double action and spring-return type(multi-spring)

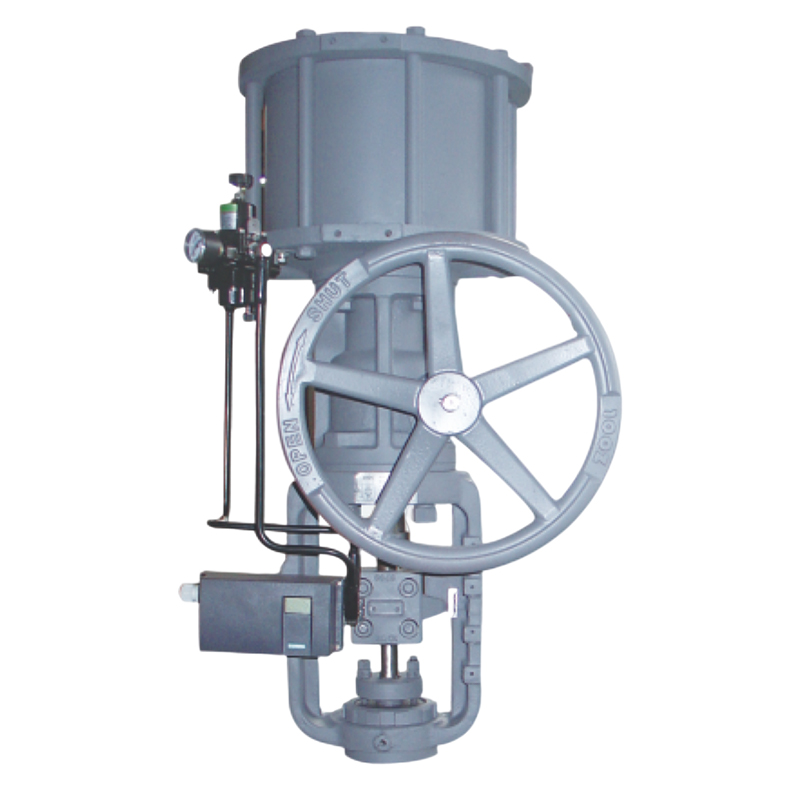

● Standard worm & gear hand wheel Exchange of automatic and manual operation

● Actuator Size: Φ300、Φ450、Φ600 ( 5030LA、5045LA、5060LA )

● Output Power: 7800N～132500N

● Stroke: 20mm ~400mm

● Spring Range: 125~375KPaG

● Air Supply Pressure: 400~500KPaG

● Ambient Temp: -40~+120°C
